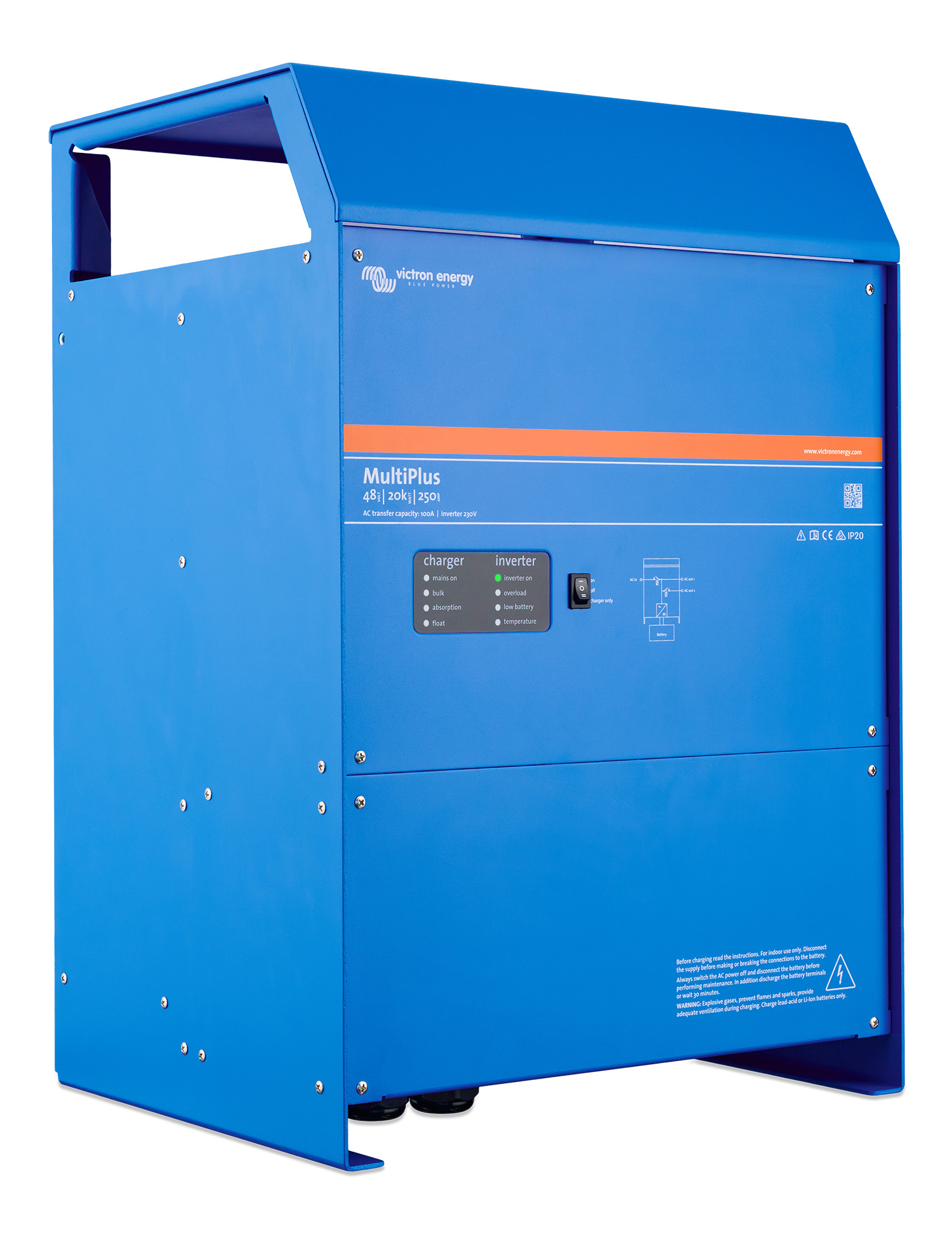

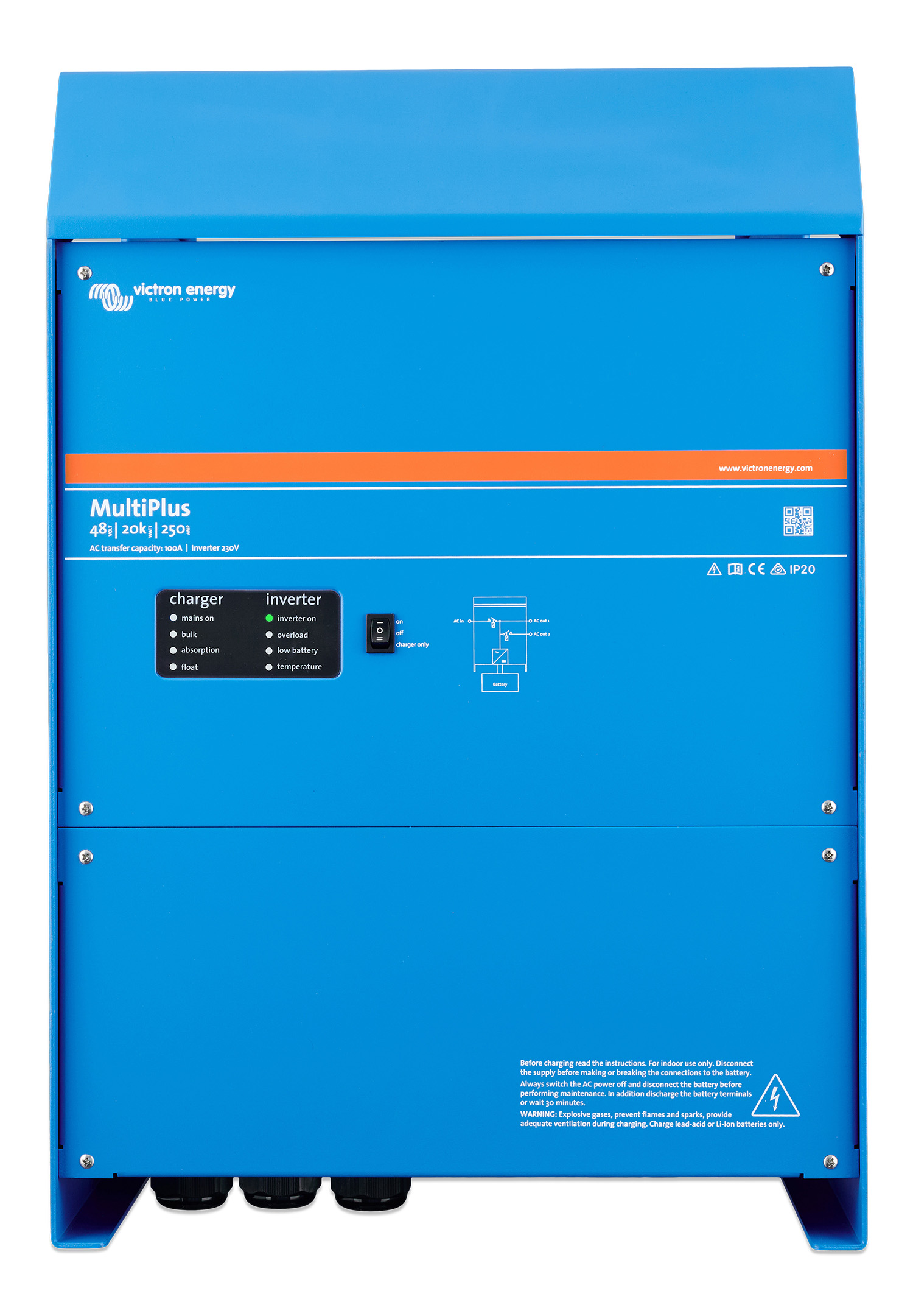

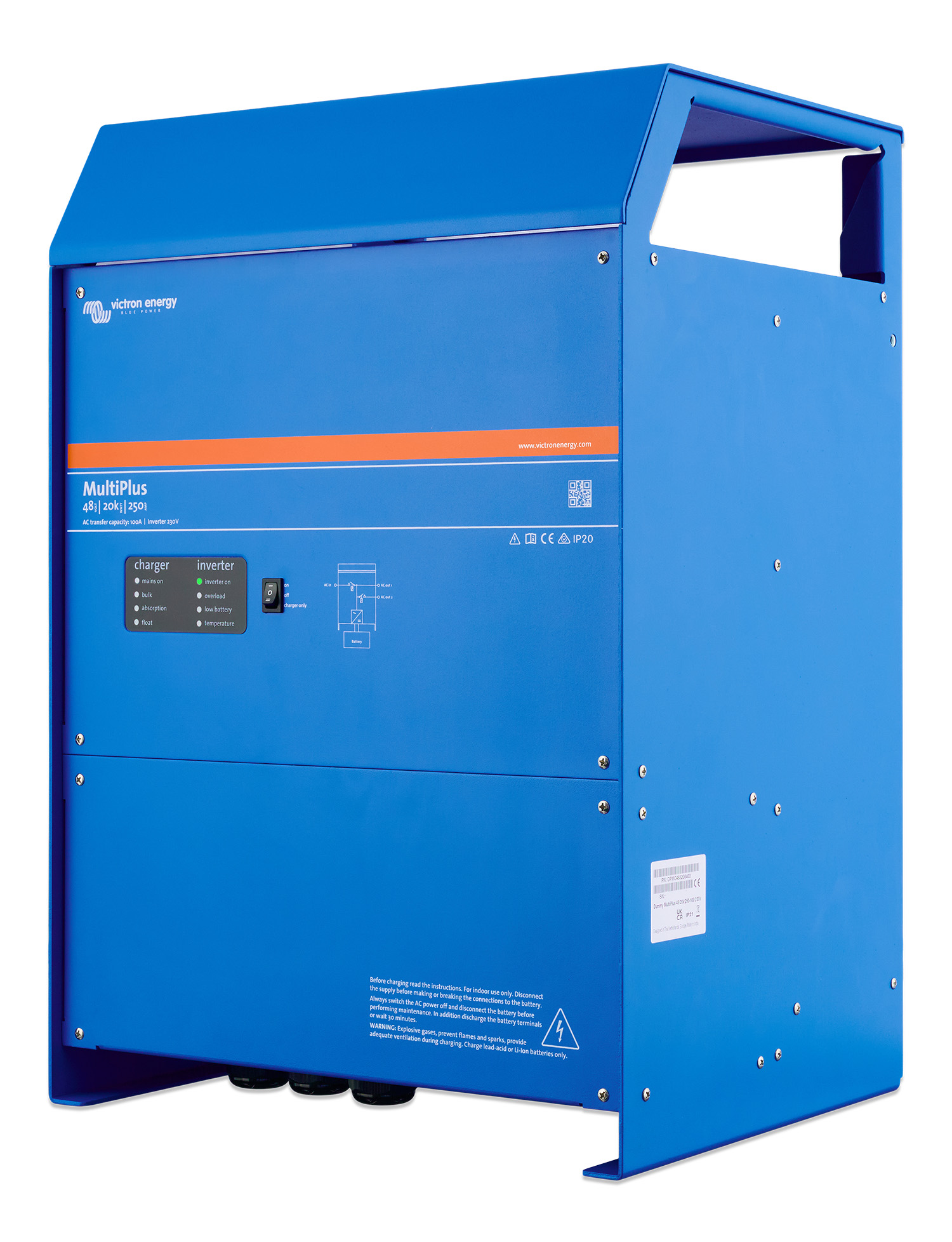

Victron Energy PMC483200400 MultiPlus 48/20000/250-100 230V

On sale ~~$3,528.00~~ $2,998.80

Sine Wave Inverter charger for 48 volts DC, 230 Volts AC, 20kW

Questions about this item? Be the first to ask here.

p/n: PMC483200400

Availability: Limited stocks available

Returns: 230 volt equipment is not returnable

Features: Fully programmable (Requires Mk3 USB Interface)

Quantity

New product is now available, this is the biggest MultiPlus Inverter in existence and produces a whopping 20 kVA of output power at 230 volts.

Pure sine wave inverter charger with 230 volt AC
20 kW continuous output power at 25°C
For 48 volt DC systems
Max charge current 250 amps
Datasheet
Instruction manual
Due to its size we prefer to drop ship this direct from Victron (requires a commercial shipping address)

MultiPlus 230V	48/20000/250-100
PowerControl / PowerAssist	Yes
Transfer switch	100A
Maximum AC input current	100A
INVERTER
DC input voltage range	38 – 60V
Output voltage	230 VAC ± 2%
Output frequency(1)	50 Hz ± 0.1%
Continuous output power at 25°C	20kW
Continuous output power at 40°C	18kW
Continuous output power at 65°C	14kW
Maximum apparent feed-in power	20kW
Time limited output power (cold start)	21kW 5 hours
Peak power	25kW 1 minute
Maximum efficiency	96%
Zero-load power	65W
Zero-load power in AES mode	40W
Zero-load power in Search mode	13W
CHARGER
AC input voltage range	187 - 265VAC
AC input frequency range	45 - 65Hz
Charge voltage 'absorption'	57.6V
Charge voltage 'float'	55.2V
Storage mode	52.8V
Max. battery charge current (25°C)	250A
Max. battery charge current (40°C)	240A
