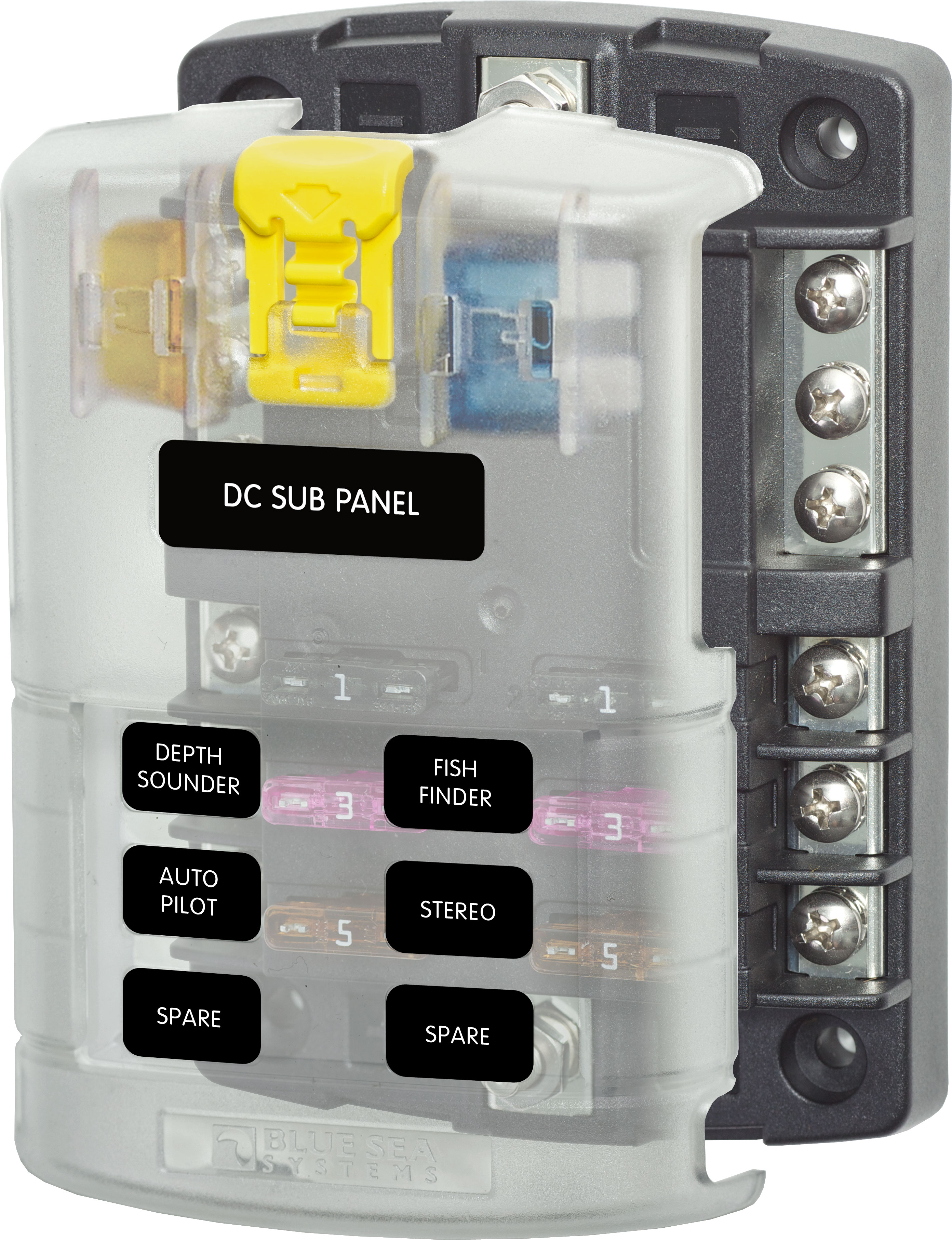

Blue Sea 5025 ST Blade Fuse Block with 6 Circuits
Blue Sea 5025 ST Blade Fuse Block with 6 Circuits
Blue Sea 5025 ST Blade Fuse Block with 6 Circuits
On sale
$47.73
$37.73
5025 ST Blade Fuse Block with Cover. 6 Circuit with Negative Bus. Clear insulating cover with label recesses accept Small Format Labels. Cover Satisfies ABYC/USCG requirements
Questions about this item? Ask here.
p/n:
BSS-0005025
Availability:
15 in stock
Put me on the Waiting List
Get a Quote
Put me on the Waiting List
Quantity
+
-
Add to Cart
Get a Quote
Add to Wish List
Description
Questions and Answers
P65 Warning
Additional information
Cover Satisfies ABYC/USCG requirements for insulation
Clear insulating cover with label recesses accept Small Format Labels
20 write-on circuit labels included, printed labels sold separately (pn 8214)
Tin-plated copper buses and fuse clips give 30 Amperes rating per circuit
Accepts ATO and ATC fast acting blade fuses
One sample fuse is included, we suggest you purchase a set of our EasyID fuses that light up when blown
Tin-plated copper buses and fuse clips give 30 Amperes rating per circuit
Rated up to 32 volts DC, 100 amps total per block
Overall height 4.894" Overall width 3.315" Overall depth 1.518"
Application brief
Detailed specification, drawings, and description.
Tech Tip
Automotive installations use a fuse block without a ground bus because they typically use the vehicle chassis as the ground and each item gets a single wire hookup. For boats a fuse block with a ground bus is usually more appropriate because each item gets a two wire hookup.
Q:
I am looking for a fused bus that has one power feed from my battery. From there i would ground and power up. These look like I would need to run power to each fuse. Is this correct?
Asked by:
Neil
- 6/6/2015
A:
With this fuse block there is a single positive and a single negative input. The inputs connect to all six positions so all the circuits will be running off the same power supply. The max allowed rating for the entire block is 100 Amps and for any one circuit is 30 Amps
Was this answer helpful?
10 of 10
Customer(s) found this Answer helpful.
Answer provided by:
Peter Kennedy (6/9/2015)
Submit an answer
Q:
I’m planning to add a 6 circuit power distribution block with negative bus. I’m needing to run 2ga cable from the battery. Will the cutouts on the PDB cover accept 2gauge AWG cable? I’m running 2 gauge because of the length of run and Voltage drop running 20’
Asked by:
Jerod
- 3/8/2019
A:
I tried it out and 2 awg will fit comfortably. The stud requires a terminal with a #10 hole and we don't stock a 2 awg terminal with that size hole. The largest we stock with a #10 hole is 4 awg
Was this answer helpful?
0 of 0
Customer(s) found this Answer helpful.
Answer provided by:
Peter Kennedy (3/11/2019)
Submit an answer
Q:
Does this product come with the fuses?
Asked by:
Sara
- 12/5/2019
A:
It comes with one sample 15 Amp fuse
Was this answer helpful?
0 of 0
Customer(s) found this Answer helpful.
Answer provided by:
Peter Kennedy (12/6/2019)
Submit an answer
Q:
How much does it cost to deliver this unit to Russia?
Asked by:
Alex
- 1/27/2020
No Answers have been submitted yet.
Submit an answer
Questions about this item? Ask here.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to
P65Warnings.ca.gov
.
Manufacturers website
UPC: 632085050252
DC wire selection chart
Click to enlarge
Fuse selection chart
Click to enlarge
Application Brief - ST (Screw Terminal) Blade Fuse Block
The ST (Screw Terminal) Blade Fuse Block was designed with screw terminals to comply with ABYC Recommended Practices and built with tin plated copper components for improved conductivity and lower operating temperatures. A cover comes standard with each model to protect the conductive surfaces from accidental shorting, label each circuit and store spare fuses. The ST Blade Fuse Block is ideal for use as a sub-panel in the DC distribution system. This solves the problem of large and expensive circuit breaker panels used to provide circuit protection for electronics and other branch circuits. With most circuit breaker panels a circuit breaker is used as well as an inline fuse for most electronic devices. Below is a diagram of a typical panel installation. By using the ST Blade Fuse Block as a sub-panel the space used is reduced and fuses more appropriate for electronics can be used. This provides up to 12 branch circuits and does away with the inline fuses while using only one position on the panel. This allows the use of a smaller panel and the system has a lower overall cost per circuit.
