> Blue Sea 6007 Mini Battery Selector Switch 1-2-BOTH-OFF

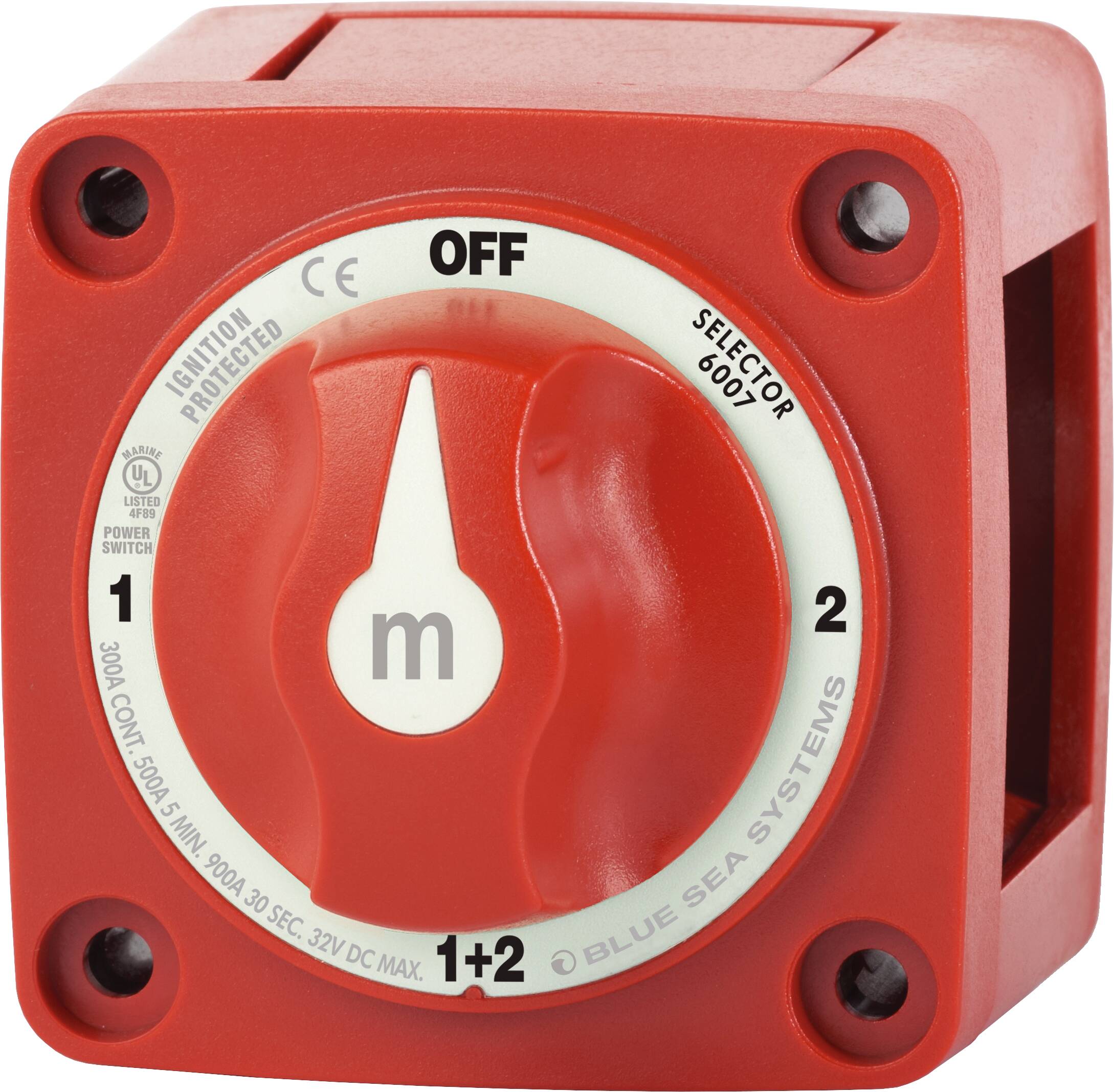

Blue Sea Systems 6007 Mini Battery Selector Switch
Blue Sea 6007 Mini Battery Selector Switch 1-2-BOTH-OFF
Questions about this item? Be the first to ask here.
7 in stock
Add to Cart
Get a Quote
Add to Wish List
This Mini Battery Switch is suitable for smaller boats such as center consoles or runabouts. The rating of the switch is almost as high as the e-Series switches but its compact size makes it more suitable for smaller boats. If you are installing this with large battery cables such as 2/0 awg and above you will find it easier to use the bigger switch if space is available.
Make before break contact design allows switching between battery banks without power interruption
- Safe for installation aboard gasoline powered boats
Case design allows surface, front panel, or rear panel mounting
Isolating cover with snap-on sections protects rear contacts
3/8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8" and M10 ring terminals
7/8" (22.22mm) stud length to accept multiple cable terminals
Ideal for marine or RV applications
All non-corrosive marine grade metals
Molded in durable reinforced polycarbonate
Tactile textures indicate knob position by feel only
Label with international ON/OFF legends
Removable key or knob remains positively retained
ICON label set included for circuit identification
Detailed specification, drawings, and description.
More about 1-2-Both battery selector switches
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to
This battery switch takes
with a 3/8" diameter hole
For this switch to meet its full ratings you have to use
4/0 awg battery cable
, this is because the heavy cable can remove any heat generated in the switch more efficiently than smaller diameter cable.
